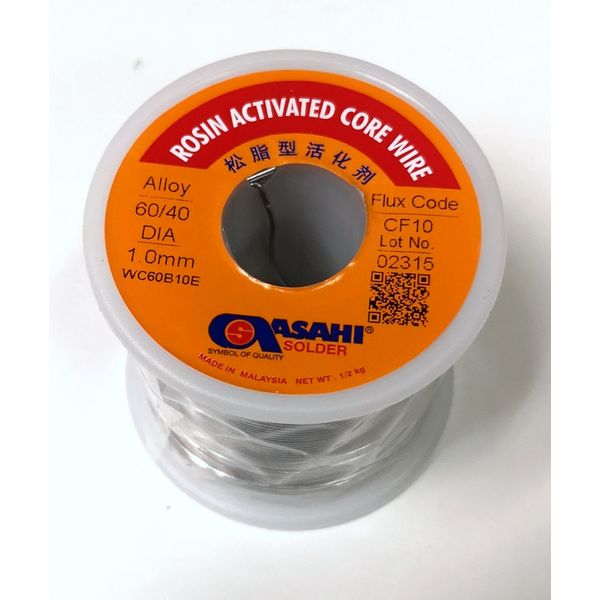

QASAHI 60/40 Lead Solder Wire

QASAHI 60/40 Lead Solder Wire

SKU: SPKCON005  · Category: Consumables › Circuit mount

RWF 12,500

In stock

Description

This 60/40 tin-lead solder wire is made for electronics work. It melts at a low temperature and flows smoothly, making it easy to create shiny, reliable joints on PCBs, wires, connectors and components — whether you're a beginner or doing repairs every day.

It has a rosin flux core, so the flux is applied automatically as the solder melts. The flux cleans the metal surfaces and helps the solder wet the joint, giving strong electrical connections with less effort.


Features

  • 60 % tin / 40 % lead alloy for easy, smooth soldering
  • Rosin flux core — no separate flux needed for most jobs
  • Low melting temperature, kind to components and PCBs
  • Bright, reliable joints
  • Suitable for PCB assembly, wire joining and repairs


Specifications

  • Alloy: Sn60 / Pb40
  • Melting range: about 183 – 190 °C
  • Flux: rosin core


Soldering tips

  1. Heat the joint — both the pad and the component leg — with the tip of the iron for 1–2 seconds.
  2. Feed the solder into the joint (not onto the iron tip) until it flows around the leg.
  3. Remove the solder, then the iron. Don't move the part while it cools.
  4. A good joint is shiny and shaped like a small volcano. Dull or ball-shaped joints should be reheated.
